3-Zone Mini Split: Sizing, Configurations & Cost
How to size a 3-zone mini-split — the common three-head configurations on a 24k or 36k condenser, what a tri-zone install really costs, and the 3-zone-vs-3-ton confusion cleared up.
Prices vary by location. Verify with local suppliers.
The common 3-zone configurations

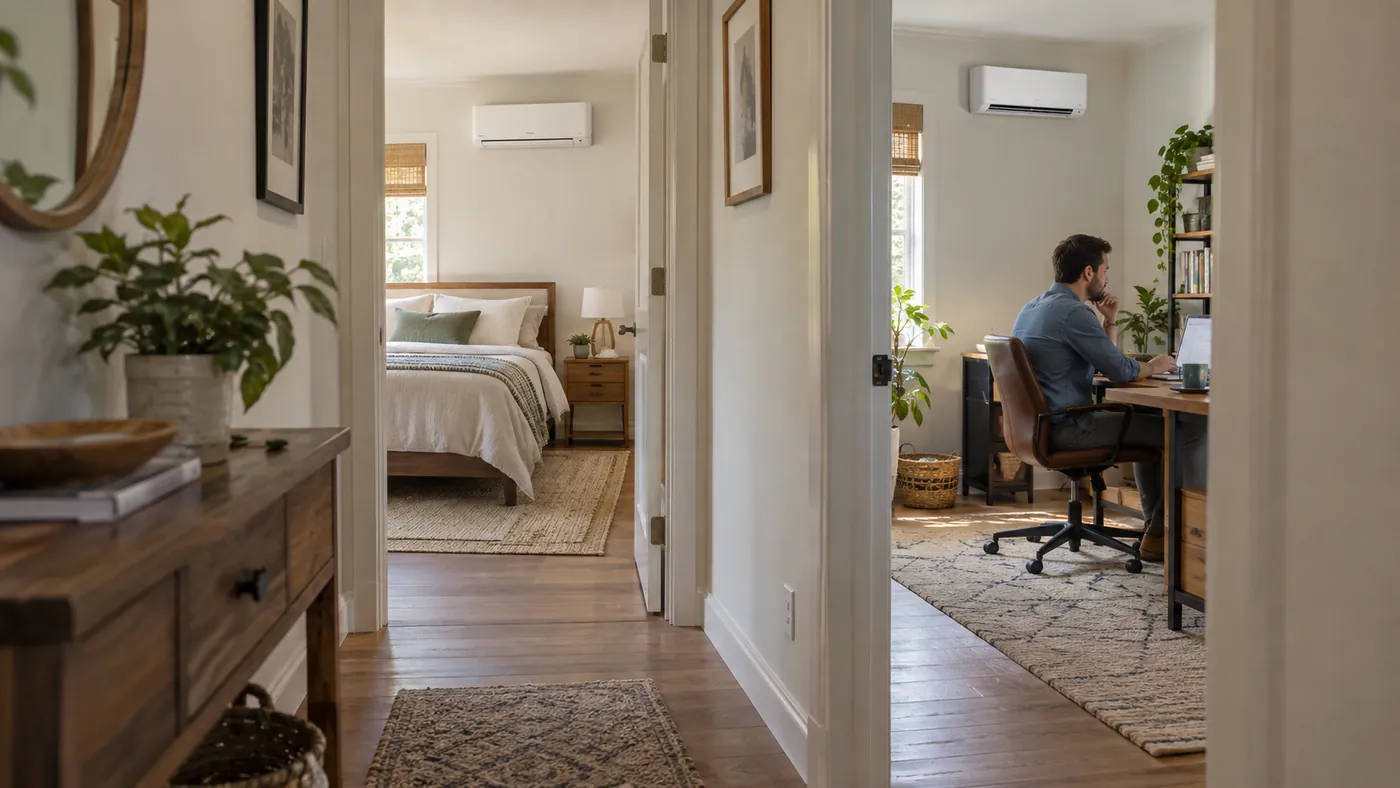

A 3-zone (tri-zone) mini-split runs three indoor heads on one outdoor condenser. Each head is sized to its own room; their sum — with the ≈ 0.9 diversity factor, since all three rarely peak together — picks the condenser:
| Heads | Condenser | Typical fit |
|---|---|---|
| 3 × 9k | 24,000 BTU | Three bedrooms |
| 9k + 9k + 12k | 36,000 BTU | Two bedrooms + living room |
| 3 × 12k | 36,000 BTU | Three larger rooms · one full floor |
| 9k + 12k + 18k | 36,000 BTU | Bedroom + office + open living area |
The calculator above opens in 3-zone mode and sizes the condenser and per-head split from your combined area.
3-zone is a layout — 3-ton is a size
The search results mix these constantly, so once, clearly: a 3-ton unit is 36,000 BTU of capacity — as a single zone it covers roughly 1,400–1,800 sq ft of open space. A 3-zone system distributes its capacity across three separate rooms. Three 12k heads also total 36,000 BTU, but a closed bedroom door stops a single 3-ton head where a tri-zone just keeps conditioning. Divided floor plan → zones; open plan → one larger head.
What a 3-zone install costs
Plan on $6,500–$13,400 installed. The third zone adds its own mounting, line set and commissioning — labor runs per head — so the jump from 2 to 3 zones costs real money, and this is the zone count where a pre-charged DIY tri-zone kit saves the most absolute dollars: the homeowner does the per-head work, and only the dedicated circuit still needs an electrician. Break your configuration down in the cost estimator, and see the multi-zone guide for the diversity math in full — or step to 2-zone / 4-zone.
Frequently asked questions
How much does it cost to install a 3-zone mini split?
Plan on about $6,500–$13,400 installed. Three 9,000 BTU heads on a 24k condenser with short line sets sit at the bottom; three 12k heads on a 36k condenser, premium brands or long refrigerant runs push toward the top. Labor runs per head, so the third zone adds real money — which is why a DIY pre-charged tri-zone kit, where the homeowner does the mounting and connection work, saves the most in absolute dollars of any zone count.
Which 3-zone mini split system is the best?
It depends on who installs it. For self-install, the pre-charged DIY tri-zone kits from MrCool lead — no vacuum pump, no EPA-608 work. For pro install, Mitsubishi and Daikin tri-zone systems lead on efficiency, cold-climate heating and dealer support, with value brands like Senville and Cooper&Hunter undercutting them on price. Match the per-head sizes to your actual rooms first (the calculator above), then compare brands at that configuration — the brand pages break down each maker’s multi-zone range.
How big of a room will a 3 ton mini split cool?
Careful — 3-zone and 3-ton are different things. A 3-ton unit is 36,000 BTU of capacity and covers roughly 1,400–1,800 sq ft of open space as a single zone. A 3-zone system is three separate indoor heads on one condenser, and its coverage is the sum of what its heads serve — three 12k heads also total 36,000 BTU but split across three rooms. Search results mix the two constantly; size by your rooms and zone count, not by tonnage alone.
What size condenser do I need for 3 zones?
Sum the three head sizes and apply the ~0.9 diversity factor: three 9,000 BTU heads (27,000 total) fit a 24,000–27,000 BTU condenser class; a 9+9+12 mix or three 12k heads (up to 36,000 total) belong on a 36,000 BTU condenser. Undersizing the condenser shows up exactly on the days all three rooms call at once — the calculator sizes it from your combined area so that day is covered.
